Color sampler available

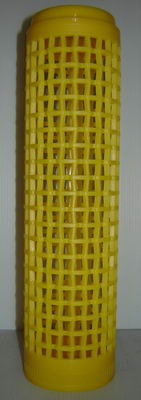

Code 1092CI - Retraflex - Special
shape patented, Perforated,
stackable, Surf. fine sandy, L.288
x Bot. ∅ 69 x Top ∅ 57.8 mm,
Thick. 3.3 mm - Weight: 110 gr.
--------------------------------Tubes For Texturising Machines---------------------------------

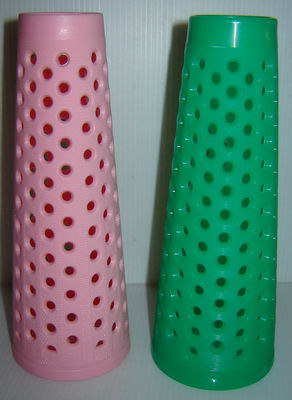

--- Perforated Cones for Dyeing or Normal Cones for Winding 4°20' - 3°30' - 5°57' - 9°15' ---

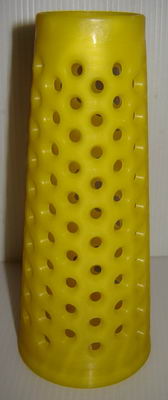

A- Code 92021 - 4°20', Surface.: Hard grip grooved,
PP, One way - L. 170 x Bot. ∅ 59 x Top ∅ 33mm
Thick: 2,1 mm, Weight: 37 gr.
A
B
C

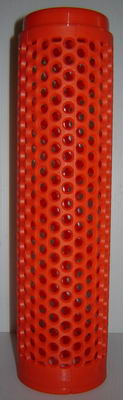

Code 1054CI - Dye Tube-Int.Sys.
F528 - Perforated, stackable,
Surf. micro stripped, L.288 x
Bot. ∅ 69.2 x Top ∅ 58 mm,
Thick. 3 mm - Weight: 104 gr.

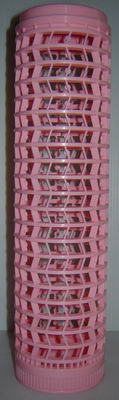

Code 1097B - Compressible
Dye Tube - Perforated, stackable,
Surf. micro stripped, L.288 x
Bot. ∅ 69.2 x Top ∅ 57.8 mm,
Thick. 5 mm - Weight: 105 gr.

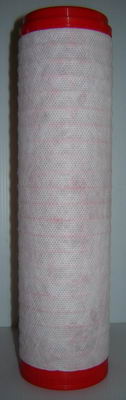

Code 1097AF - Compressible
Dye Tube with Filter - Perforated,
stackable, Surf. fine sandy, L.288
x Bot. ∅ 69.2 x Top ∅ 57.8 mm,
Thick. 5 mm - Weight: 105 gr.
B- Code SGA59A - 4°20', Surface.: micro lined,
PP, Reusable - L. 170 x Bot. ∅ 59 x Top ∅ 33mm
Thick: 3,1 mm, Weight: 55 gr.
C- Code SGA50FV - 4°20', Surface.: micro lined,
PP + Fiber glass, Reusable - L. 145 x Bot. ∅ 55
x Top ∅ 33.3 mm, Thick: 3,1 mm, Weight: 56 gr.
Adding Fiber Glass the cone become stronger.
Code 1058CI
PP
L.: 228 mm
Bot. ∅ 56.2 mm
Top ∅ 45 mm,
Surf:Fine sandy
Thick:3,5 mm
Weight: 95 gr.
Code 1056HCI
PP
L.: 230 mm
Bot. ∅ 56.2 mm
Top ∅ 45 mm,
Surf:Micro stripped
Thick: 2.7 mm
Weight: 65 gr.
Code 1098CI
Special PP -X
L.: 230 mm
Bot. ∅ 61 mm
Top ∅ 56 mm
Surf: Smooth
Thick: 4 mm
Weight: 45 gr.
Code 1087CI
Special PP-Z
L.: 228 mm
Bot. ∅ 56 mm
Top ∅ 44.5 mm,
Surf:Fine sandy
Thick: 2,9 mm
Weight: 58 gr.
Code SGB118FV
PP + Fiber glass
L.: 170 mm
Bot. ∅ 59.7 mm
Top ∅ 55 mm,
Surf: grooved
Thick: 3.3 mm
Weight: 95 gr.
Code 1048FV3
PP + Fiber glass
L.: 170 mm
Bot. ∅ 59 mm
Top ∅ 54 mm,
Surf: Smooth
Thick: 5 mm
Weight: 105 gr.
Code 06A
PP
L.: 230 mm
Bot. ∅ 56 mm
Top ∅ 44.5 mm,
Surf:H.G.Grooved
Thick: 1.6 mm
Weight: 60 gr.
Type D
Type E
Type F
Type G
Type H
Type I
Type J
D
E
F
G
H
I
J
Click on the picture to magnify
PLASTIC TUBES FOR DYEING & CYLINDERS
PRODUCTION LINE:
- Plastic Tubes and Cones for dyeing, Cylinders for Twisting or Winding, in various kind of materials and colors.
- Good quality at competitive price.
- We sell in cartons or containers in reusable or one way.
- Samples available.
